- Place of Origin: China
- Brand Name: Dwin
- Model Number: 1300*2500
Machine application for cnc router machine
* Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
* The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
* Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti-Bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
* Decorate industry: Acrylic, PVC,MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
- Place of Origin: China
- Brand Name: Dwin
- Model Number: 1300*2500
Brand | Dwin |

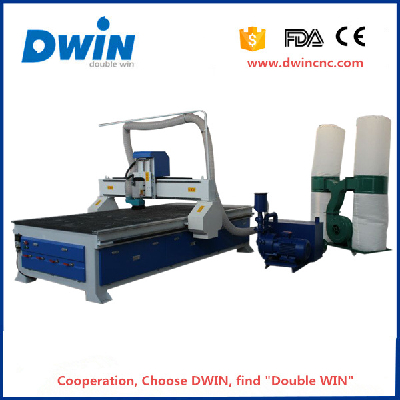

Model | DW 1325 cnc wood router |
Machine Size | 1900*3100*1800 |
Table size(mm) | 1600*3100 |
Engraving area | |
Working Form | Full-automatic |
Spindle Power | China water cooling spindle |
Spindle Rotate(rpm) | 6000~24000 |
Motor Driver | Stepper motor (Chinese servo motor or imported servo motor is optional) |
Tool Diameter(mm) | Ø3.175,Ø4,Ø6, Ø12.7mm |
Machine Structure | Industry square tube structure |
Transmission System | Imported ball screw or high accuracy gear rack |
X,Y,Z Rail | Imported square rail |
Mechanical Accuracy | <0.03/300mm |
Engraving Speed(mm/min) | 8000~12000mm/min |
Feeding Speed | manual |
Data Transmission | PC connect |
Support Format | G code or HPGL |
Working Voltage | AC220V/50Hz or 380V/50Hz |
Support Format | G Code or HPGL |
Range of Application | Woodworking relief engrave ,Cutting , Hollow |
Machine Net Weight | 1500Kg |
