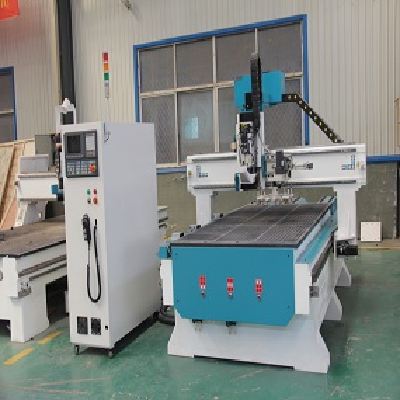

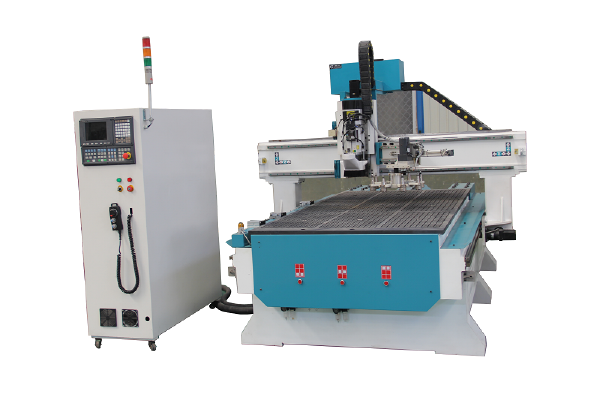

1325 ATC wood routerfor wooden carving Wood furniture mdf,acrylic,rubber,pvc,stone,plywood sheet cnc router machine price

1325 ATC wood routerfor wooden carving Wood furniture mdf,acrylic,rubber,pvc,stone,plywood sheet cnc router machine price

  • FOB Price:US $19,000 -25,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao
  • Payment Terms: T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-08-21
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  13
  • Place of Origin:  Shandong
  • Brand Name:  Dwin
  • Model Number:  DW1325
  • Weight: 1500.000 kg

1).Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2).Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3).Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4).Italy HSD 9.0kw air cooling spindle( 0-24000rpm )
5).Automatic tool change, convinient and swift

6).With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc






  • Size:  13
  • Place of Origin:  Shandong
  • Brand Name:  Dwin
  • Model Number:  DW1325
  • Weight: 1500.000 kg


1).Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2).Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3).Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4).Italy HSD 9.0kw air cooling spindle( 0-24000rpm )
5).Automatic tool change, convinient and swift

6).With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc



Wood Router Performance Parameter

————————————————————————————-----------------------------------------





NumberDescription Parameter
1X,Y,Z Working Area1300mmx2500mmx300mm
2Table Size1330mm×3040mm
3X,Y,Z Traveling Positioning Accuracy±0.03/300
4X,Y,Z Repositioning Accuracy±0.03mm
5Table SurfaceVacuum and  T-slot Combined (Option: T-slot table)
6FrameWelded structure
7X, Y StructureRack and Pinion Drive, Hiwin Rail Linear Bearings
8Z StructureHiwin Rail Linear Bearings and Ball Screw
9Max. Power Consumption4.5kw (Without Spindle)
10Max. Rapid Travel Rate45000mm/min
11Max. Working Speed30000mm/min
12Spindle Power9.0 kw
13Spindle Speed0-24000RPM
14Drive MotorsYaskawa servo motor
15Working VoltageAC 380V/50/60Hz,3PH
16Command LanguageG Code
17Operating SystemSyntec Control System
18Computer InterfaceEthernet, CF Card
19Flash Memory512M(U Disk)
20ColletER32
21X,Y Resolution<0.03mm
22Software CompatibilityType3/UcancameV9 software   (Option: Artcam software)
23Running Environment  Temperature0 - 45 Centigrade
24Relative Humidity30% - 75%
25Packing Size3500X2250X2200mm
26N.W.1500KG
27G.W.1800KG


CNC Router machine working Samples

————————————————————————————-----------------------------------------



1. WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash,composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.



2.Advertising industry: advertising identification, sigh making, Acrylic engraving and cutting,crystal word making, blaster molding, and other advertising materials derivatives making.



3.Die industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting,PVC pipe, wooden planks and other non-metallic mold.

4.relief sculpture and 3D engraving

5.Cylindrical object



1. Offering the specification of the machine ,2 years warranty
2. English software, user manual and operation CD
3. 24 hours technical support by e-mail, calling service If you have any problems ,we will within 12 hours to solve it .
4. If you need any component of the machine later ,we will provide the best price for you
5. 7working days to produce the machine ,in the meanwhile , we will report the production process in time.
