- Size: 15
- Place of Origin: Jinan
- Brand Name: Dwin
- Model Number: DW1530
- Weight: 1300.000 kg
- :
- :
- :

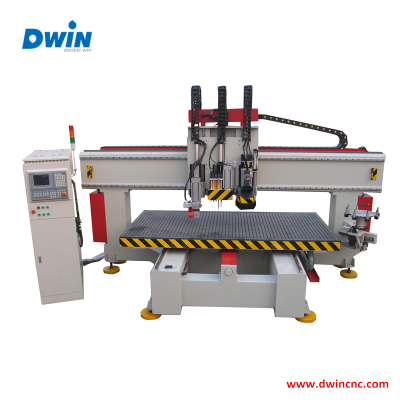

ATC CNC Router Woodworking Center
Features
1. Thinkening of the structure of the overall bed side tube body, science of welding, the overall shape.
2.Imported square rails, loading capacity of large, smooth operation and high precision, high-strength rails to ensure the quality of mechanical precision and wear resistance, high service life of more than 10 ordinary guide times.
3.Vacuum adsorption worktable, big flux vacuum pump. Without manual operation. Increase the efficiency greatly.
4.Adopts the Italian famous brand (HSD) air cooling spindle. Dispose unique changing cutter organizations, can gain the necessary cutter at will, special-purpose to one of platforms, cutter size error of very accurate compensation. It only need less than 10 seconds to change. Storehouses marks and contains 6 cutters. We can also customize one storehouses of larger capacity.
5.Intelligent protection for working table. Can avoid the damaging the table owning to the wrong operation or software fault. Its protection of step beyond the boundary, avoids the crash while design area beyond.
Parameter
Name | Specification |
Lathe Bed | Strong T-mode stand lathe bed |
Gantry | Steel structure gantry design |
Guide Rail | Square Rail with X,Y,Z axis |
X Y Z Transmission | Gear rack with X and Y axis Imported Ball Screw with Z axis |
Spindle Motor | 9KW HSD Air cooling spindle for tool changer |
Boring head | One boring head (14pcs drills) side milling side saws |
Inverter | 11KW inverter |
Control System | SYNTEC control system |
Typeset Software | Type3(English)/Ucancam(can support any G-code software) |
Motor | 750W Panasonic Servo Motor Taiwan servo speed reducing device |
Driver | Panasonic Servo Driver |
Tools cooling | OIL sprayer pump |
Lathe Table | Vacuum table with 8 sections 8 vacuum cups |
Vacuum Pump | TONGYOU VACUUM Pump |
Air compressor | 3.0KW |
Tool Magazine | ArmlessType ATC changer,8pcs ISO30 tool holder |
Dust Collector | 3.0KW |
Electricity cabinet | Independent Cabinet |
Tool sensor | NICE-CUT TOOL SENSOR |
Working Area | 1300X2500X250mm |
Tools | Woodworking Tools with 10 pieces |
Cylinder working | One rotary attachment |
