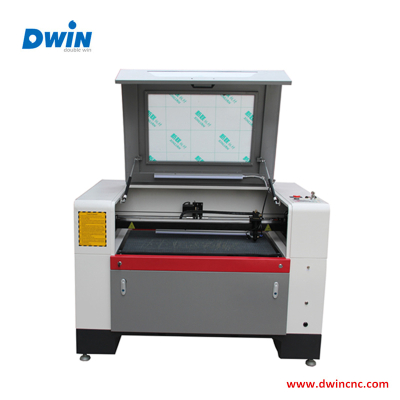

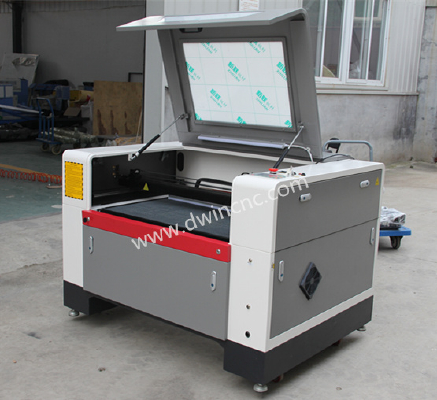

CNC Co2 Laser Engraver Laser Engraving Machine for Wood Acrylic
Features of laser engraving machine
1.The imported linear guide rail ensure the high precision and the long service.
2.The stepper motor guarantees cutting and engraving smooth.
3.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about the manual positioning.
4.High quality laser tube provides the strong beam and long service life.
5.More scientific design and high strength steel-frame structure,which increase the fuselage strength more than 40% to prevent the machine from distortion during long time work.
6.The anti-pollution design improves the stability of the whole machine greatly.
7.Configure higher power laser tube.Beijing RECI LASER TUBE, can be over 10000 hours.
Parts introduction
linear guide rail: Adopt high quality linear guide rail, original parts, with high speed and durable belt to guide the machine, so the machine could work with many years without loosing of speed and accuracy
Control panel: Advanced control system in China, with good quality and multi function, easy to learn and easy to operate
Mirror hold and X beam: All the machine structure are strongest type, with 3mm steel square tube built, mirror hold could easily be adjusted, that could save much time for customers if any change for the laser path is needed.
Distribution box: All the motor drivers with best brand in China, good quality and accurate data output, make sure machine works in best way. All the power supply for the machine driver or control box has been tested more than 72 hours, to make sure the machine parts works well.
Model name | DW5040 laser engraver | ||
Laser type | Co2 laser | ||
Laser power | 40w 60w 80w or other options | ||
Cooling Mode | Circulating water cooling | ||
Power Adjustment | 0-100% controlling, no segment and adjusting by software | ||
Machine Control and Drive | Speedy DSP controlling, stepper motor | ||
Max Cutting Speed | 30000mm/min | ||
Max engraving Speed | 60000mm/min | ||
Repeating Location | ±0.01mm | ||
Minimum Character | Chinese character 1.5mm, crisscross-row 1mm | ||
Max Power | <1500W | ||
Adjustable Up-down Distance of Laser Head | 30mm | ||
Up-down Range of Working Table | Mechanical 150mm-360mm | ||
Working Voltage | AC110V-220V 50Hz-60Hz | ||
Working Environment | Temperature: 0-45, Humidity: 5%-95%, and congeal-water removed | ||
Dictate Format | *.plt,*.dst,*.dxf,*.bmp,*.dwg,*.al,*las, Support AutoCAD, CoreDraw direct outputting | ||
Laser cutting machine Standard accessories with machine | 1. English User manual of machine | ||
Optional parts for laser cutting machine | 1. An extra laser tube (Laser tube is consumable, For the RECI laser tube warranty is 10000 working hours.) |
Application of the laser engraving machine
Applicable Material
♦Acrylic ♦Crytal ♦Glass ♦Leather ♦MDF ♦Paper ♦Plastic ♦Plexiglass ♦Plywood ♦Rubber
♦Stone ♦Wood ♦Other non-metal
Company information
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine ,CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making.
