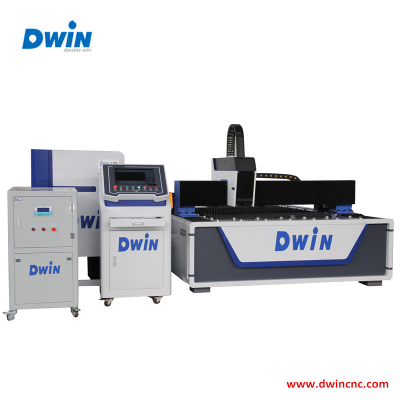

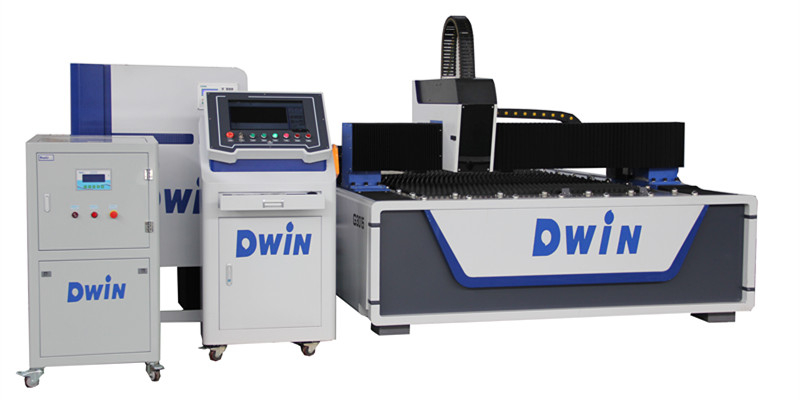

CNC Fiber Laser Cutting/Engraving Machine Ipg 1kw for Cutter 10mm Carbon Steel

CNC Fiber Laser Cutting/Engraving Machine Ipg 1kw for Cutter 10mm Carbon Steel

  • FOB Price:US $30,000 -130,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 10 Sets per Month
  • Port: Qingdao /Shanghai
  • Payment Terms: L/C,T/T,Western Union
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-08-21
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  25
  • Place of Origin:  Jinan
  • Brand Name:  Dwin
  • Model Number:  DW1530
  • Weight: 5000.000 kg

HOW LASER CUTTING WORKS

Laser cutting is a technology that uses a laser to cut materials, and is typically used for industrial manufacturing applications, but is also starting to be used by schools, small businesses, and hobbyists. Laser cutting works by directing the output of a high-power laser most commonly through optics. The laser optics and CNC (computer numerical control) are used to direct the material or the laser beam generated. A typical commercial laser for cutting materials would involve a motion control system to follow a CNC of the pattern to be cut onto the material. The focused laser beam is directed at the material, which then either melts, burns, vaporizes away, or is blown away by a jet of gas,  leaving an edge with a high-quality surface finish. Industrial laser cutters are used to cut flat-sheet material as well as structural and piping materials.


Dwin Fiber LASER CUTTING Advantages:


1, Cost saving on power consumption/ only 20-30% of co2 laser cutting machine under same power.
2, Flexibility and precision cutting of simple or complex parts
3, Adopts imported world brand fiber laser/Life time over 100,000hrs
4, Imported servo motor and gearing system ensure precision cutting
5, High quality cut with no extra finishing required
6, Higher cutting speed and efficient, speed of cutting plate over 10 meters per minute
7, Non contact cut which means no marks or contamination of the material
8, Ability to cut virtually any sheet metal



Applicable Materials:


Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum, aluminum alloy, galvanized sheet and other metal pipes and tubes.

Applicable Industry:
It is widely applied in industrial pipeline processing, explosion-proof equipment, military industry, chemical industry, oil exploration, lamps and lanterns, metal processing, ironware, building, etc.


Pre-sale service:


1. Free sample making:

For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Sample

shipping back cost should be paid by purchaser.

2. Progressing Solution Design:

According to customer's product processing requirement, we can design the unique solution that supports higher

manufacturing efficiency and better processing quality for customer.

 After-sale service:

1.One years warranty for machine, One years for domestic source (One year for IPG source)

2. Technical support

Lifelong technical support online or by email and 18 hours online service to help you use our machine well.

3. Oversea service

Offer oversea service for training,installing, operating if necessary (Buyer need offer food & accommodation, round tickets

and engineer charges USD200/day)

4. Training service

Offer training at our factory for free (you could visit us and learn)



Note:

We will supply the machine with training video and user's manual in English for installing, operation, maintenance to

ensure customer could use our machine well.

It will be our pleasure if you reply back to us, We will be out your service to give all details about our company and product.



Any further request or plans kindly get back to us with your requirments.


  • Size:  25
  • Place of Origin:  Jinan
  • Brand Name:  Dwin
  • Model Number:  DW1530
  • Weight: 5000.000 kg
ModelDW3015-500IDW3015-1000I
Medium of laserSemiconductor pump continuous ytterbium doped fiber
Laser wavelength 1070nm
Laser output power500W1000W
Cutting area(mm)(L×W)      3000mm×1500mm
Max cutting speed(m/min) 18 m/min24 m/min
Min line width< 0.1mm< 0.125mm
Cutting depth 0.2mm---5mm       0.2mm---10mm
Driving WayImported servo motor
Tranmission WayY-axis imported gear rack double driver,X-axis imported gear rack
Operational Temp Range10 ~ 40ºC
Electrical Requirements380V/50Hz.60Amp
Cooling ModeWater cooled
Continuous working time24 hours
Warranty:2 years on laser source
WeightAbout 5000kg
Outline size(mm)       4270mm×2420mm×1750mm  (L×W×H)
