- Size: 12
- Place of Origin: Jinan
- Brand Name: Dwin
- Model Number: DW1325
- Weight: 800.000 kg

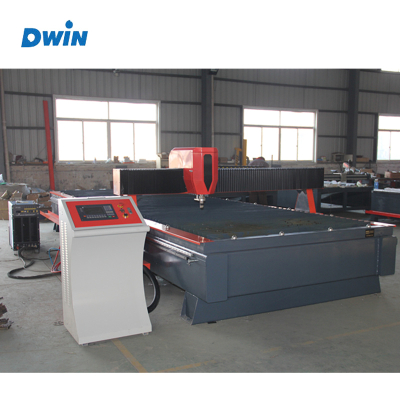

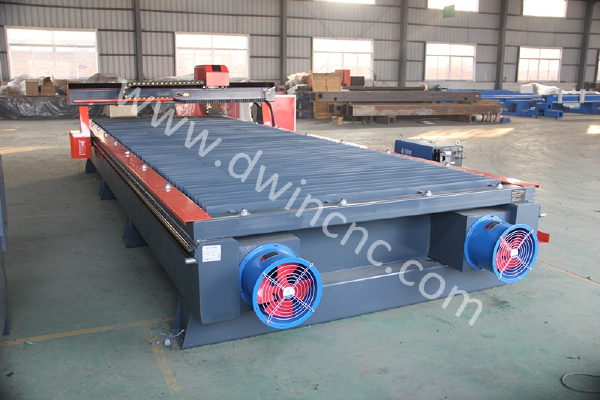

CNC Metal Plate Carbon Steel Mild Steel Plasma Cutting Machine
This Machine with 60a chinese made plasma source, or you can also choose usa made plasma source, the later will have better cutting result. And working size can also customized according to your requirements.
Features of plasma cutting machine
1. Unique structure: Gantry structure, double motor driver of Y axis .Light beam design, linear guide rail, high accuracy, stable transmission.
2. Untouched plasma head, small cutting edge, no cutting residue.
3. Water cooling system avoids the distortion of metal board.
4. High cutting speed, low cost.
5. Advanced numeral control system, stable performance.
6. Software compatibility: Ucancam, Type 3, Artcum, etc.
7. Success ratio of arc striking can be over 99%.
8. Application area: Metal sheets such as Iron sheets, Aluminum sheets, Galvanized sheets. Titanium Plates.
Technical parameter
CNC plasma cutting machine | |||
Model | DW1325 cnc plasma cutting machine | ||
Working area | 1300mmX2500mm | ||
Cutting thickness | 0.5 to 15mm ( cutting ability is different according to the plasma source power) | ||
Cutting speed | 0-8000mm/min | ||
Power | 8.5KW | ||
Input voltage | 3-phase 380V ( can be customized according to your country voltage) | ||
Frequency of power | 50Hz | ||
Plasma Current | 60A option: 100a 160a 200a and imported plasma source | ||
Document transmission form | USB interface | ||
Working form | Untouched arc striking | ||
Optional Power Source | H y p e r t h e r m , Cut-Master | ||
Control system | Starfire | ||
Advantages of plasma cutting machine
Use china brand plasma source or option with imported, both have good performance, best cutting result
Transmission method, this machine use linear guide rail and rack-gear for machine moving, with high power stepper motor, machine works stably and accurate, so the cutting result is very good
High quality plasma cutting head, enhance the cutting result
Applications
This machine can be used for all kinds of metal materials cutting
