- Size: 14
- Place of Origin: China
- Brand Name: Dwin
- Model Number: DW1325
- Weight: 1200.000 kg

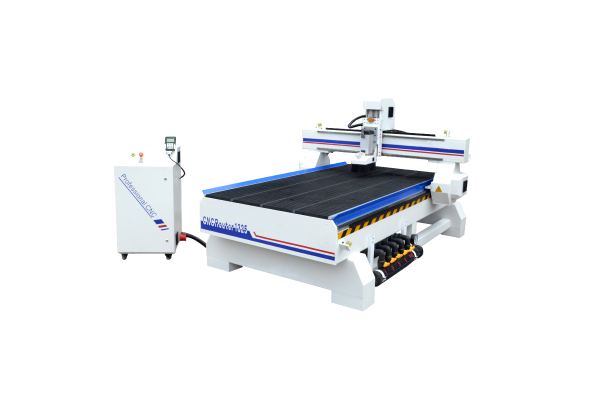

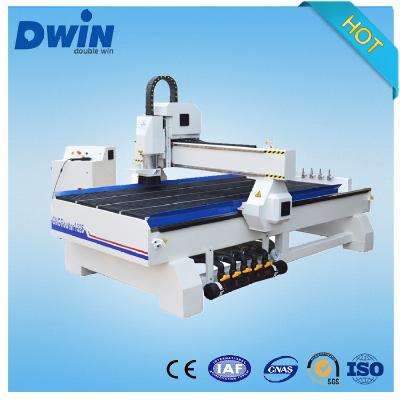

3D CNC Router Woodworking Machine Product Features:
1).Adopt linear-square orbit, whole machine is welded with seamless steel structure, can heavy loading.
2).Taiwan HIWIN square guide rail, ball screw for z axis and gear-wheel for x and y axis
3).Taiwan Syntec control system. Bus control, namely a line control all drives, convenient maintenance.
4).Italy HSD 9.0kw air cooling spindle( 0-18000rpm ),Water cooling spindle (0-24000rpm)
5).Automatic tool change, convinient and swift
6).With better compatibility, can math with many programs such as Type3, artcam, castmate, CAM, etc.
3D CNC Router Woodworking Machine Application Industry:
*Furniture Decoration Industry :A large area flat plate engraving ,wood ,panel furniture carving, wood art murals,wood cabinet doors carving.
*Wood products processing: Sewing machine table, electrical counter table,sports equipment.
*Musical instrument industry:Instrument 3-dimensional surface engraving,shape cutting.
*Artwork:Photo Frame , jewelry box.
*Electronic industry:Circuit board, insulation material,LED display screen.
- Size: 14
- Place of Origin: China
- Brand Name: Dwin
- Model Number: DW1325
- Weight: 1200.000 kg
Technical Specification:
| Model | DW1325 | Optional |
| Working area(X*Y*Z,mm) | 1300mm*2500mm*200mm | Customization is available |
| Machine structure | Square tube lathe bed,vacuum table | |
| Work holding | Vacuum table | Vacuum table with T-slot |
| Machine dimensions(mm) | 3100*2050*1650 | |
| Processing precision | 0.01mm | |
| Reposition precision | 0.02mm | |
| Max idle speed | 35000mm/min | |
| Max working speed | 25000mm/min | |
| Spindle | 5.0KW-9.0KW water cooling(0-24000rpm) for choice | Air cooling(0-18000rpm) for choice |
| Available tools(mm) | 3.175~20, 8pcs | Tools number can specified (less than 12 pcs) |
| Drive system | Stepper motors | Servo motors |
| Working voltage | AC380V±30V,50HZ | |
| Command code | G code(*,nc,*mmg,*u00,etc.),*eng | |
| Control system | NC-studio control system | Taiwan SYNTEC System or customer specified |
| Compatible software | Compatible with any software generating G code file in Windows | |
| Other optionals: Dust collection, Tool cooling system with sink instead of vacuum system | ||
