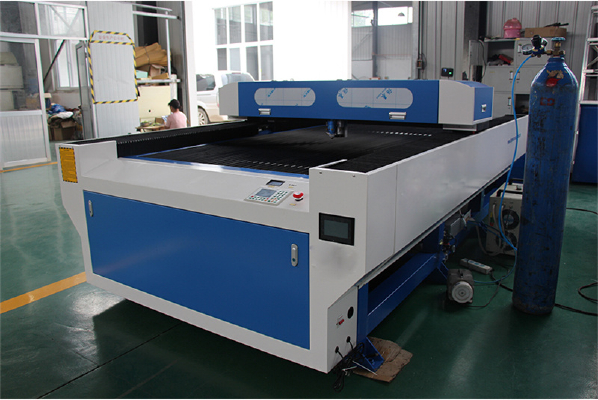

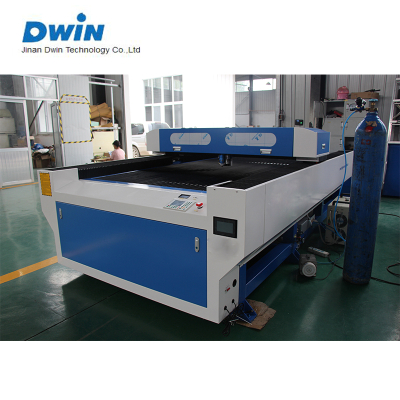

Cheap Price Metal Steel and Nonmetal Wood Co2 Mixing Laser Cutting Machine
Basic information of the laser cutting machine
This metal nonmetal laser cutting machine is DWIN's Mix CO2 laser cutting machine type, can cut both metal and nonmetal, the basic infromation of this machine are:
1. Working area is: 1300x2500mm.
2. Ball screw, THK guides, servo motor.
3. Automatic Z axis control .
4. 280w laser tube, Yongli brand
5. lathe bed using the 8mm thickness steel to protect the stability when machine working. All machines using less than 8mm. please don't choose.
6. When you choose , please tell me, how many thickness you want to cut. its stainless steel or carbon steel or other hard steel. then can help me to choose the correct power and machine for you.
Machine details
1.600°cheat treatment, 24 hours cooling in the oven, 8 meters gantry milling, accurate argon shielded arc welding, to make sure many years usage without deformation.
2. Adopting United States imported sensor, precise laser cutting head, can cut metal and non-metal materials.
3. Adopts high precision collimator for testing to install the guide rail, precision is 0.01mm
4. Fast cutting with high precision It can cut stainless steel, carbon steel, mild steel, acrylic, wood and other materials
Technical parameter
Model | DW1325 metal nonmetal laser cutting machine |
Working area | 1300*2500mm |
Laser type | Sealed CO2 laser tube, water cooling, wavelength 10.6um |
Laser power | 150/180W/220W/280W |
Laser life | 10000 hours |
Max. Cutting thickness | Acrylic :0- 35mm. Plywood: 0-20mm Stainless steel:0-2.5mm |
Cooling type | Water-cooling (5-30°C tap water or purified water) |
Working Table | Aluminium alloy knife-strip working table |
Y axis guide rail | Imported Taiwan HIWIN square guide rail |
Engraving Scanning Speed | 0 - 60000mm/min |
Cutting Speed | 0 - 30000mm/min |
Laser Output | 1-100% software setting |
Min. Shaping character | Chatacter2.0mm×2.0mm, English1.0mm×1.0mm |
Highest scanning resolution | 2500dpi |
Locating Precision | ±0.01mm, red light locating. |
Power supply | AC220±10%,single phase,50Hz |
Operating system | DSP offline control system |
Driving system | Stepper |
Cooling system | Industrial water chiller |
Exhaust system | Exhaust fan |
Running environment | Temperature:5-45°C; Humidity:5-95% (free of condensed water) |
Software | RDworks (latest version) |
Supported graphic Format | BMP, DST, GIF, TGA, AI, PLT, DXF, LAS, etc. |
Compatible Software | CorelDRAW, Photoshop, AutoCAD, |
Machine Features
1.This machine is a mixing cutting machine, specialized in cutting stainless steel, carbon steel, MDF and acrylic.
2.High efficiency: The cutting speed of 1mm stainless steel is 1800 mm/min. 20mm acrylic with perfect cutting quality.
3.This laser cutting machine is matched with the Panasonic Servo System and high precision. ball-screw system to ensure the high precision, running stable and long-operation.
4.The sheet metal is not flat. But the system can sense a distance from the nozzle to the metal surface and follow the surface up and down to automatically adjust the certain focus distance for keeping high precision cutting quality.
5.The laser beam is expanding, so the bigger the working area is, the more difficult the machine is to get the same cutting quality over the whole working area.
6.The fixed beam optical system can guarantees the consistent beam power and quality over the whole working area so that the machine can get the same cutting quality.
7.High efficiency, high precision, stable performance and long life.
8.Low running cost about 5KVA/hour.
Applicable industries:
Advertisement,gift packing,building model,decoration,arts and crafts industry,etc.
Applicable materials:
wood,acrylic,organic glass,MDF,carbon steel,stainless steel,mild steel etc
150w Cutting parameter
Laser power | 150w | |||
Material | Acrylic | MDF | Stainless steel | Carbon steel |
Cutting thickness | 30mm | 10mm | 1.5mm | 1.5mm |
Cutting speed
Material | Cutting thickness | Cutting speed (mm/min) |
Stainless steel | 0.5mm | 2700 |
1mm | 1800 | |
1.5mm | 1000-1200 | |
Carbon steel
| 0.5mm | 3000 |
1mm | 1800 | |
1.5mm | 1000-1200 | |
Acrylic | 10mm | 300 |
20mm | 90-120 | |
MDF | 10mm | 300-400 |
Company information
Jinan Dwin Technology Co., Ltd. is a high-tech enterprise that is engaged in the research, manufacture and sale of laser machines, laser engraving and cutting machine, laser marking machine ,CNC routers and relevant advertisement products. Dwin has gained CE, FDA and ISO certifications.
Dwin mainly produces laser engraving machines, laser cutting machines, laser marking machines, Advertisement CNC routers, marble CNC routers and CNC woodworking machines.
Dwin machines are widely used in garment cutting, craftwork, rubber plate, package printing, leather cutting, sign marking, wood furniture, construction, decoration, stone engraving and mould making.
Packing details
1. Using Foam to surround the machine side to protect the machine .
2. Using membrane cover all the machine
3. Heavy plywood box to load the machine
4. Square steel under the bottle box to make the plywood box more stable
Contact information
Billy PU
Email: dwin2@dwincnc.com
Tel: 0086 531 88601773
Mob/ Whatsapp: 0086 188 6612 8285
Skype: dwintech1
