- Size: 12
- Place of Origin: Jinan
- Brand Name: Dwin
- Model Number: DW1325
- Weight: 800.000 kg
- :
- :
- :

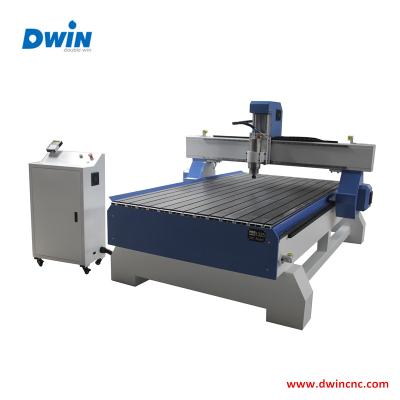

DW1325 Wood Mdf Plywood Nonmetal Engraving Carving Cutting CNC Router
Features of the machine:
1) high accuracy ball bearing guide screw of Taiwan,minimize the slit.
2) imported linear rail,self lubricating glide.
3) our routers have the features of Re caving after stop and the power failure may be restored.
4) unique preservation way of the zero point.
5) use for long time and no distortion.
6) this type is suitable for advertisement.
Application Materials:
This machine is good at engraving and cutting various materials,solid wood, MDF board,PMMA, decorative materials and aluminum plate,ect.
Technical Parameter
Item | Description | parameter |
1 | XYZ working area | 1300*2500*120mm |
2 | Table size | 1450*2750mm |
3 | XYZ travel positioning accuracy | ±0.05mm |
4 | XYZ repositioning positioning accury | ±0.05mm |
5 | Table surface | Aluminum molding PVC |
6 | frame | Cast iron |
7 | drive system X-Y axis | Ball screw or rack pinion |
8 | drive system Z axis | Ball screw |
9 | spindle power | 1.5 KW(2.2kw 3.0kw option) |
10 | Max velocity | 8m/min |
11 | Max working speed | 6m/min |
12 | Spindle speed | 0-24000rmp |
13 | work mode | Stepper |
14 | Working voltage` | AC220V/380V/110V 50HZ |
15 | Command language | G code |
16 | Interface | USB |
17 | Operating system | Ncstudio(weihong) |
18 | Flash memory | 128 |
19 | X-Y resolution | 0.025mm |
20 | Software environment | Wentai type3 artcam |
21 | Running environment | Temperature:0-45°C |
22 | Packing size | 3300*1650*1350mm |
23 | Net weight | 560kg |
24 | Gross weight | 700kg |
