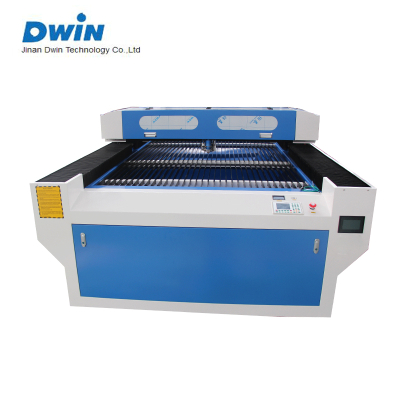

DW1325M CO2 metal laser cutting machine 280W

DW1325M CO2 metal laser cutting machine 280W

  • FOB Price:US $7,800 -15,000 / Set (Only for reference) | Get Latest Price
  • Min.Order Quantity: 1 Set
  • Supply Ability: 50 Sets per Month
  • Port: Any port in China
  • Payment Terms: L/C,T/T,Western Union,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2009-08-21
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  10
  • Place of Origin:  China
  • Brand Name:  Dwin
  • Model Number:  DW1325M
  • Weight: 1000.000 kg

CNC Metal CO2 Laser Cutting Machine Features:
1.To cater to larger material cutting in co2 metal and non metal cutting industry,this machine adopts large and solid cast steel machine lathe,to make it more capable in material load bearing,at the same time,let the machine operating stable during work.

2.With ball screw transmission on one side of the it,this machine acquires high precision in metal cutting .Special up amd down adjusting laser head ,enables it processing well on uneven metal materials.

3.Imported Japanese servo motor,more powerful and stable compares with traditional china made servo motor ,cooperating with the imported ball screw,this machine get additional more precision and flexibility in cutting result than the ordinary model.

4.This machine can also be customized.


Our Servies:
1. The machine guarantee is 24 months.
2. 24 hours technical support by email or calling.
3.  Friendly English verson manual and operation video U- disc.

  • Size:  10
  • Place of Origin:  China
  • Brand Name:  Dwin
  • Model Number:  DW1325M
  • Weight: 1000.000 kg

CNC Metal CO2 Laser Cutting Machine Technical parameters:

ModelDW1325M
Working area1300mm*2500mm
Laser power150W/180W/280W yongli ,Reci or GSI
Cutting speed 0-50mm/s
Reposition accuracy±0.05mm
Working voltageAC110-220V ±10%    50HZ-60HZ
Laser head professional laser head with the auto height contorl
Graphic format supportedPLT,BMP,DXF,AI,CDR,DST
Software compatibilityCorelDraw ,PhotoShop,AutoCAD
Y  axis transimassionball screw with square linear guide rail
Driving systemPanasonic or Yaskawa servo mators
Laser tube cooling typewater chiller LW16 or CW6000 cooling machine
Other auxiliary equipmentExhaust fans and air exhaust pipe
Working temperature0ºC-45ºC
Operating humidity8%-95%(without condensed water)
Laser control system DSP control system
Laser tube typesealed co2 glass laser tube
