- Place of Origin: China
- Brand Name: Dwin
- Model Number: 1530
1. The double ball screw closedloop system and imported open CNC system enable high processing accuracy and high working efficiency during high speed cutting.
2. Standard collocation of 500W fiber laser generator and optional 400W-2000W fiber laser generator ensures low operation and maintenance cost.
3. Open structure is easy and convenient for material loading and unloading.
4. Aiming at high speed cutting, we design and manufacture strengthened welded machine body after 2 times of aging process which ensures long-term accuracy and stability of performance.
5. Standard collocation of dual-pressure gas control system of 3 gas sources (high pressure air, nitrogen, oxygen) meets the processing requirement of all kinds of materials.
6. Easy operation and low cost.
7. Optimized optical lens, specially designed nozzle and sensor technology realize smoother and more stable cutting.
- Place of Origin: China
- Brand Name: Dwin
- Model Number: 1530

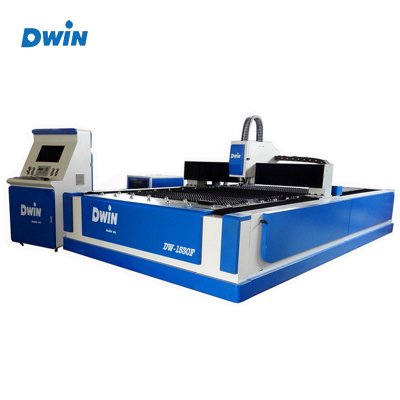

Fiber laser cutting machine Technical Parameters | |||
Machine models | DW1325 with 1000W Raycus | ||
Control system & Nesting Software | CypCut control system | ||
Cooling System | Water Chiller | ||
Lubrication System | Automatic Lubrication system | ||
Electrical Components | SMC,Schneider | ||
Assist Gas Choosing Control | 3 types of gases can be used | ||
Repeat Position Accuracy | ±0.03mm | ||
Position Accuracy | ±0.05mm | ||
Min. Kerf | 0.1~0.05mm (depends on material thickness) | ||
Max. Processing speed | 64m/min | ||
Power Supply Requirement | AC 380V ± 5% 50/60Hz 3Phase | ||
500W: 2mm stainless steel, 6mm carbon steel. 750W: 4mm stainless steel, 8mm carbon steel | |||
