- Size: 1
- Place of Origin: Jinan
- Brand Name: Dwin
- Model Number: DW3030
- Weight: 75.000 kg
- :
- :
- :

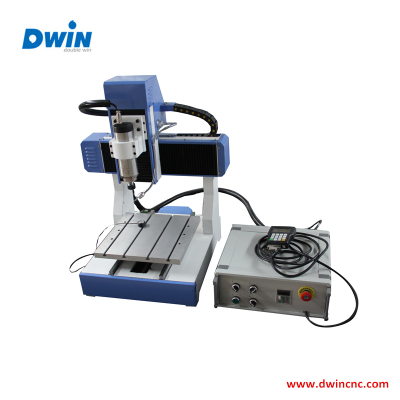

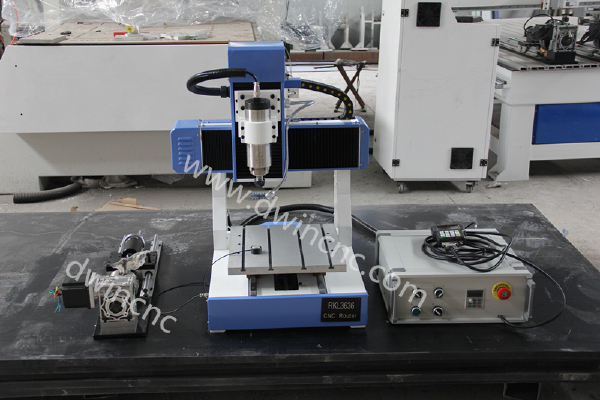

DW3030 1.5KW CNC Router for Wood Acrylic Plastic ABS
Feature:
1.Iron cast wholly frame, double-screw auto eliminating ball screw, floor-type linear guide transmission.
2.High power water cooling brushless motor, more forceful cutting capability, wear well.
3.High speed driver and stepper motor could enhance the machine easy maintenance.
4.Well designed dust and water proof device ensure the machine easy maintenance.
5.Advanced in CNC industry ,break-point memory pointes for 10 pcs, reducing material waster.
6.High compatibility, applicable for CNC software:type3,Artcam, Castmate,Pore,
variable CAD/CAM etc. It is easily to process relief sculpture, shadow carving, three dimension
characters in fancy style etc
Applicable material:
microlite, natural granite ,seeing stone, marble, bowler, bluestone, glass, grass, aluminum, iron,
plastic and wood. Etc.
Applicable industry:
Stone processing, metal processing.
Parameter
Type | Wood engraving machine |
Model | DW3030 |
Machine Body | Whole cast iron |
Work Dimensions | 300x300x60mm |
Body Dimensions | 600x600x600mm |
Z-axis Working Area | 60mm |
Max. Feeing Height | 60mm |
Cut Thickness of Material | <20mm |
Max. Speed | 4200mm/min |
Working Speed | 0-3000mm/min |
Mechanical Precision | 0.01mm |
Software | Type3, Artcut, Artcam |
Max. Power Consumption | 900W |
Power Supply | AC220V/50Hz and others |
Driver Type | Lead shine Stepper Motor |
Memory | 1MB |
Spindle | 1.5KW variable speed, water cooled motor |
Spindle Speed | 0-24,000rpm |
Blade Diameter | 1-6m |
Control System | Artcut or Weihong (NCSTUDIO) or DSP(USB interface |
Command | G code, u00, mmg, plt |
Interface | RS232 |
Running Circumstance Temperature | 0-45 |
Relative Humidity | 30%-75% |
