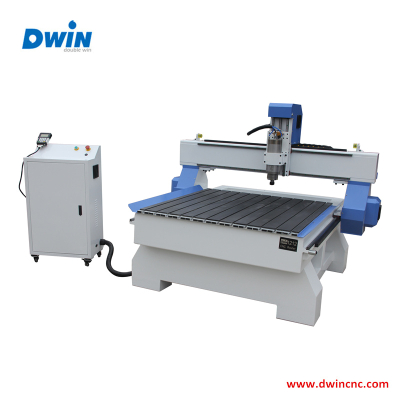

High quality Wood Acrylic PVC Plywood CNC Carving Engraving Cutting Router Machine
Performance features:
Multi long service life and high quality water cooling spindle
Precise , high speed and wonderful accuracy .
Integral cast iron frame,more durability.
Taiwan hiwin ball screws are used on X,Y,Z axes,to keep the engraving delicate without producing saw-cuting effects.
Break point memory function, ensure continuously working after accident or power off.
Be compatible with various CAD/CAM software as Type 3/Artcam/Casmate/Artcut etc.
Application:
Applicable to process kinds of boards,such as solid wood,acrylic,PVC board,shaving board,fireproof wood etc.Widely used in complex processing on door,cupboard,audio wood shell etc.
Parameter:
Description | DW1212 CNC Router |
X,Y,Z Working Area | 1200x1200x120mm |
Table Size | 1690X1800mm |
X,Y,Z Traveling Positioning Accuracy | ±0.01/100mm |
X,Y,Z repositioning Accuracy | ±0.01mm |
Table Surface | T-slot Extrusions |
Frame | Cast Steel |
X, Z Structure | Ball Screw |
Y Structure | Hiwin Rail Linear Bearings and Ball Screw |
Max. Power Consumption (Without spindle) | 0.8Kw |
Max. Rapid Travel Rate | 8000mm/min |
Max. Working Speed | 6000mm/min |
Spindle Power Motor | 1.5Kw water spindle other power for option |
Spindle Speed | 0-24000RPM |
Drive Motors | Leadshine Stepper system |
Working Voltage | AC380V or 220V/50/60Hz |
Command Language | G code |
Operating System | NC-studio (Optin:Mach3, DSP System) |
Interface | USB |
Collet | ER11 |
X,Y Resolution | <0.01mm |
Software Compatibility | Type3 software, Ucancam software (Option: Artcam software) |
Running Environment | Temperature: 0℃~45℃ |
Packing Size | 1980x1830x1760mm |
Net Weight | 400kg |
Gross Weight | 500kg |
