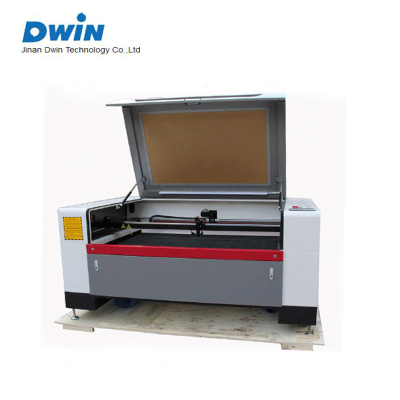

Hot sale 6040 6090 mini CO2 laser engraving machine with factory directly price
Features:
1. High stability laser tube, imported lens and mirror, long life-span.
2. The up-down work table design satisfies the customers need of engraving thick materials.
3. Adopt advanced DSP digital control system, international standard laser power supply, integrated framework style ,usb2.0 interface output can support off-line working.
4. Strong software function, compitable with Coreldraw, Autocad and so on.
5. Auto focus system, water pump, air pump and rotary attachment are optional.
Applications:
It is widely used in mould industry, advertising, decoration, arts and crafts, electronic appliances, etc.
And It is widely used for engraving & cutting on wood, acrylic, PVC plastic, plexiglass, architectural models, rubber plates, bamboo products and so on.
Machine parameter
Engraving area | 900*600mm |
Laser Power | 40W/50W/60W/80W/100W/130W/150W |
Engraving Speed | 500mm/s Max |
Engraving Depth | 5mm |
Cutting Speed | 60mm/s |
Cutting Depth (Acrylic) | 0-15mm (acrylic) |
Up and down work table | Ec Up and down 300mm adjustable |
Minimum Shaping Character | 1 X 1mm |
Resolution Ratio | 0.0254mm (1000dpi) |
Power Supply | 220V(or110V) /-10% 50Hz |
Resetting Positioning | Accuracy less than or equal to 0.01mm |
Water protecting sensor and alarm | Yes |
Operating Temperature | 0-45℃ |
Operating Humidity | 35-70℃ |
Graphic Format Supported | PLT/DXF/BMP/JPG/GIF/PGN/TIF |
Operation System | Windows 98/ME/2000/XP/VISTA/Windows 7/8 |
Software | Moshi/Laserdraw |
Engraving on Curve Surfaces(Yes/No) | No |
Control Configuration | DSP |
Water Cooling(Yes/No) | Yes |
Maximum Height Of Materials To Engrave(mm) | 120mm |
Laser Tube | Sealed CO2 glass laser tube |
Machine Dimension | 1390x740x640mm |
Packing Dimension | 1500mm * 870mm * 770mm |
Gross Weight | 150kg |
DWIN Service
# 24 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
Welcome to contact with Judy
Skype: dwinlaser
Whatsapp: 0086 176 1583 8486
Wechat: luckcai688
