- Size: 13
- Place of Origin: Jinan
- Brand Name: Dwin
- Model Number: DW1325
- Weight: 800.000 kg
- :
- :
- :
- :
- :

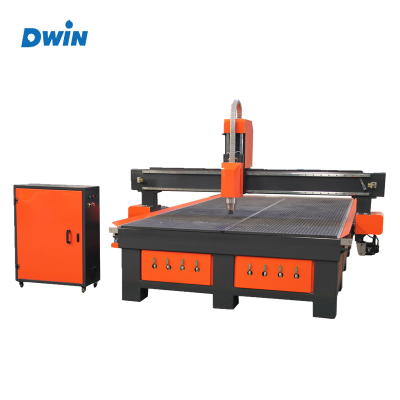

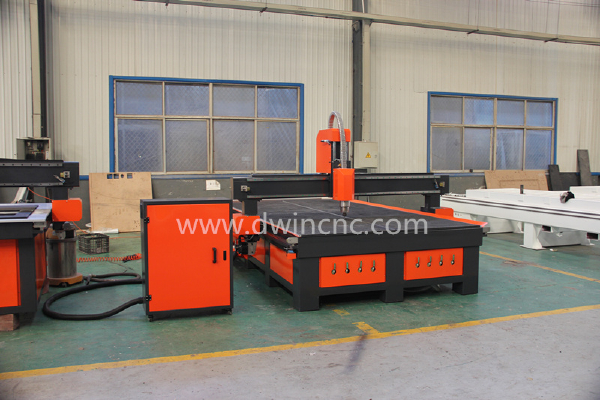

Wood Metal PVC Foam Cutting Carving 3D CNC Router Cheap Price Made in China
Advantage Features of the CNC Router:
1)Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2)Machine is mainly assembled with precise parts. Japanese YAKSAWA servo motor or China stepper motor make machine stable running with low noise, high speed and high accuracy. Italy HSD spindle or China made make machine with high precision and long service time and stable movement. Tool sensor enables the machine compensate the tolerance of the tool length.
3)Vacuum working table with double cavities and Bakelite material with high absorption power.
4)Imported control system, separated keyboard control, color LCD display and DSP add machine more versatility.
5)Strong dust collector ensures site cleanliness during the machine operation.
6)Auto lubricating system, one touch can finish periodic maintenance easily.
Optional parameter of the CNC Router:
Option Engraving size: 1300*1800mm, 1300*2500mm, 1500*3000mm, 2000*3000mm.
( Other size can be customized according to specific requirements)
Option Spindle: 3KW/4.5KW/6KW Air cooling .
Option Parts : Rotary Axis, Multi-Spindles.
Technical parameter
Number | Description | Parameter |
1 | X,Y,Z Working Area | 1300x2500x200mm |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
4 | X,Y,Z Repositioning Accuracy | ±0.03mm |
5 | Table Surface | Vacuum&T-slot Table |
6 | Frame | Welded Structure,heavy duty T-structure |
7 | X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
8 | Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
9 | Max. Power Consumption | 2.0KW |
10 | Max. Rapid Travel Rate | 45000mm/min |
11 | Max. Working Speed | 30000mm/min |
12 | Spindle Power | 3KW HSD air cooling spindle(optional) |
13 | Spindle Speed | 0-24000RPM |
14 | Drive Motors | Delta servo motor (optional) |
15 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V) |
16 | Command Language | G Code |
17 | Operating System | DSP (Options: Ncstudio /Mach3 Software) |
18 | Computer Interface | USB |
19 | Collet | ER25 |
20 | X,Y Resolution | <0.01mm |
21 | Software Compatibility | Type3 Software, (Option: Artcam Software) |
22 | Running Environment Temperature | 0 - 45 Centigrade |
23 | Relative Humidity | 30% - 75% |
Application Industry
1)WoodFurniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.
2)Advertising Industry: advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.
3)Die Industry:A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.
4)Relief Sculpture and 3D Engraving
5)Cylindrical object
